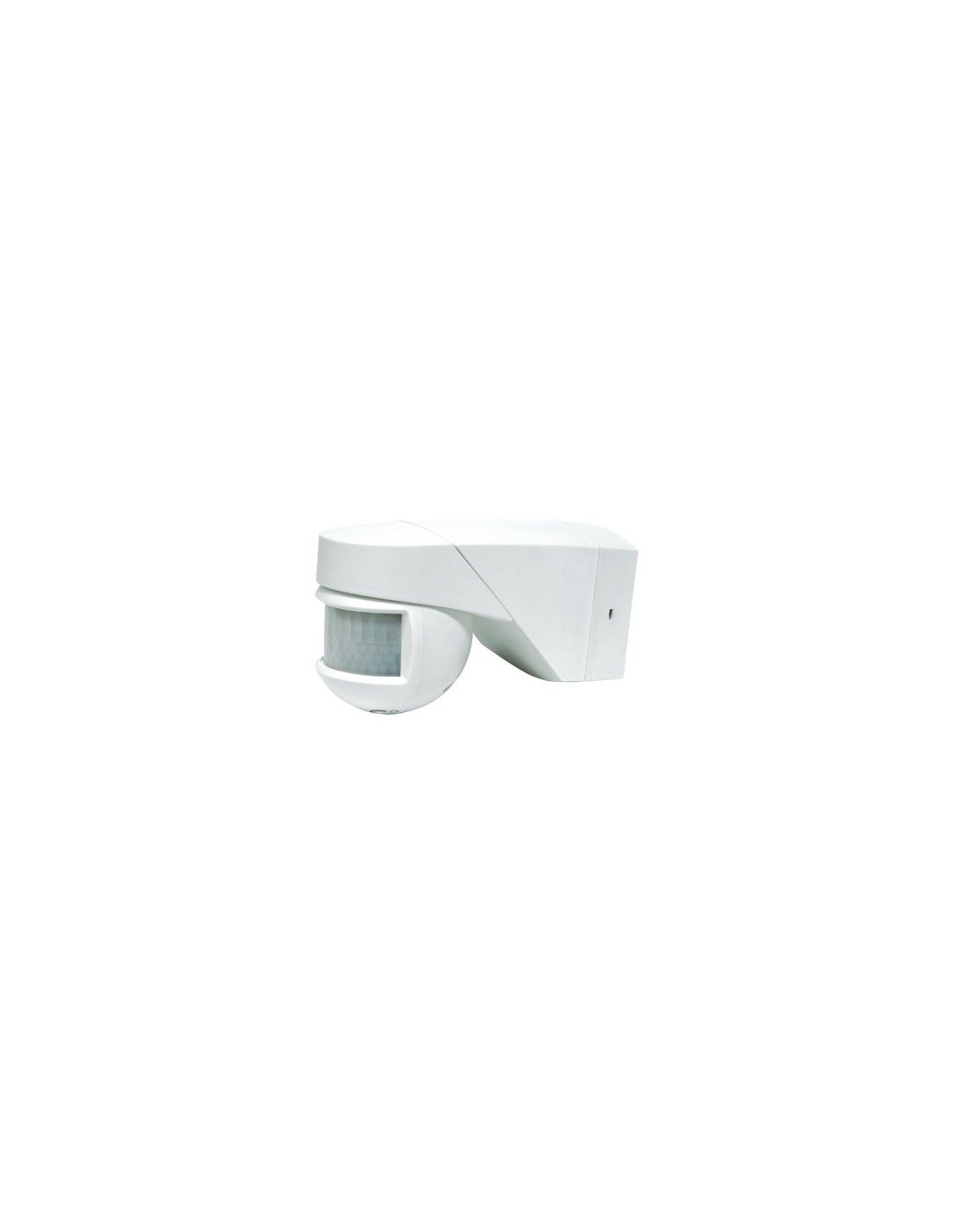

Motion Detector for surface mounting on wall or ceiling, it can also be installed in corners or corners.
Protection IP 55 against ingress of dust and water jets according to en 60529.
Parameters adjustable: timing and sensitivity to light.
Limiter field. Overrides the detection in specific areas of the catchment area.
Pilot status LED that is on when the computer detects motion.
Power Supply:230 Va.c., 50 Hz
Power of rupture:10, 230 Va.c.
Timing: from 3s to 30 min.
Light sensitivity:adjustable 5-2.000 lux
Temp. operating:-20 ºC to +40 ºC
Degree of protection:IP 55 according to en 60529
Angle of detection:200 °
Detection field frontal:12 m at 20ºC
Field of detection, lateral:8 m at 20ºC
Maximum loads
Incandescent lamps:2000 W
Fluorescent:600 VA
Halogen-low voltage:600 VA
Halogens (230V AC):2000 W
Lamps low consumption:600 VA
Lamps leds:60 VA
