Motion Detector-ceiling mount 360 ° Orbis Dicromat Micro OB133612
Motion Detector-ceiling mount 360 ° Orbis Dicromat Micro OB133612

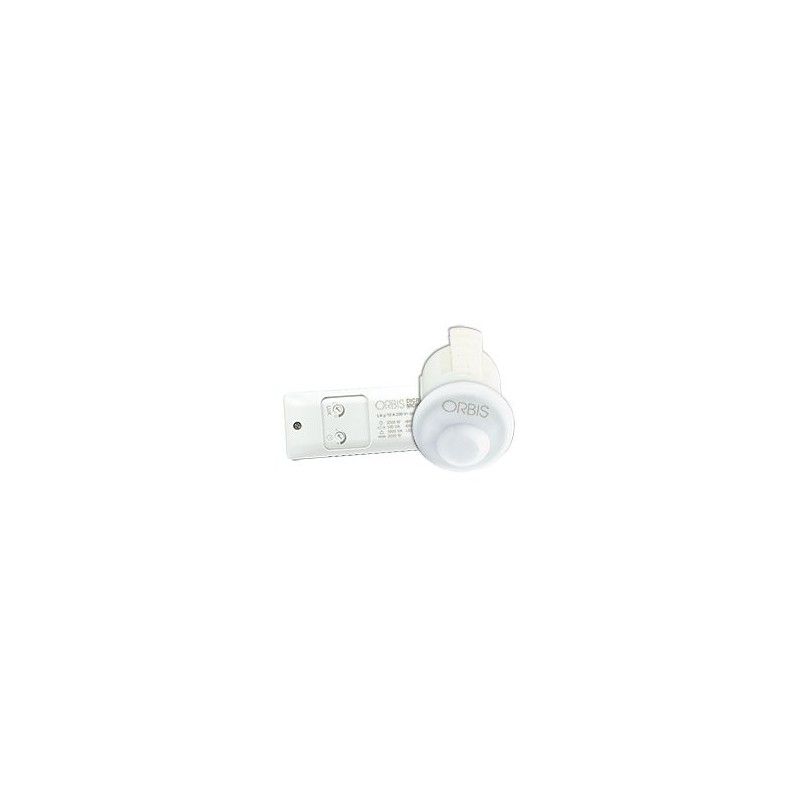

Recessed 360º motion detector Orbis Dicromat Micro OB133612

ORBIS OB133612
Last items in stock
€131.71
VAT included

Installation recessed into ceiling.

Small searchcoil of only 16 mm in diameter.

Ideal for small spaces such as closets, elevators, input housing or cabins in bathrooms.

8 Items

Order now and receive it...

03-02-2025   with  MRW

between 03-02-2025 and 04-02-2025   with  Correos

Description

Installation built-in sunroof.

The small size of the sensor and its detection area will become the ideal equipment for small spaces such as entrances of homes, closets, elevators, cabins, bathrooms, etc

Pilot status LED that is on when the computer detects motion.

Parameters adjustable: timing and sensitivity to light.

Power Supply:230 Va.c., 50 Hz

Power of rupture:10, 230 Va.c.

Timing: from 6s to 12 min.

Light sensitivity:adjustable from 5-3.000 lux

Temp. operating:0 ºC to +45 ºC

Degree of protection:IP 20 according to en 60529

Detection angle:360 °

Field of detection:Up to 4 m in diameter

Installation height:2.5 m

Maximum loads

Incandescent lamps:2000 W

Fluorescent:100 VA

Halogen low-voltage:1000 VA

Halogens (230V AC):2000 W

Lamps low power consumption:100 VA

Lamps leds:50 VA



Product Details

Opening angle
360º
Color
Blanco
EAN
8426709106256
Manufacturer
Orbis
Protection
IP20
Reference
ORBIS OB133612
Nominal voltage (V)
230V
Type of installation
Flush-mounted
Certification
CE
