• Resettable timer or impulse switch.
• Impulse duration: 30sec ~ 10min.
• Mounting inside the register box.
• Power supply: 230V~ 50Hz.
• Breaking capacity: 16A 250V cosφ=1.
• Radio-frequency communication 868.4MHz. Maximum range of 200m in open field.

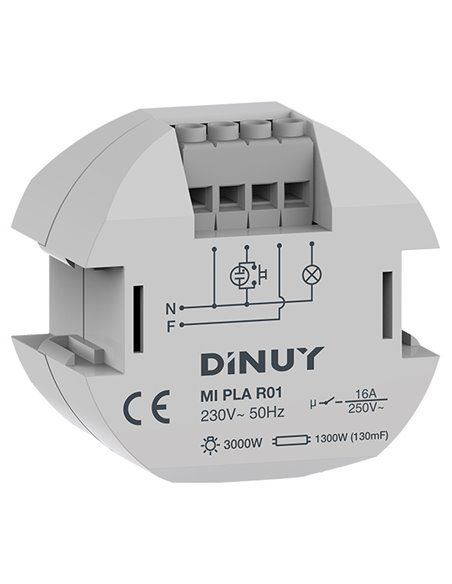

Product reference MI PLA R01
Supply voltage (V) 230VAC
Frequency (Hz) 50
Own consumption 40mA
Relay breaking power (A) 16< br/>LED lamps (W) 400
Incandescent and Halogen 230V (W) 3000
Halogen 12V with electronic transformer (W) 3000
Halogen with ferromagnetic transformer (W) 2400
Minimum timing (seconds) 30
Maximum timing (minutes) 10
Mounting Registration box
Fluorescent lamps (VA) 1300
Contactor allowed Yes
Zero crossing Yes< br/>Compatible with Radio-Frequency DINUY
Radio-Frequency 868.3MHz
Maximum range (m) 200
Operating Temperature (ºC) (min) 0
Operating Temperature (ºC) (max) 40
Environmental Protection IP20 according to UNE20324
According to Standard UNE-EN60669-2-1 and UNE-EN60669-2-3
