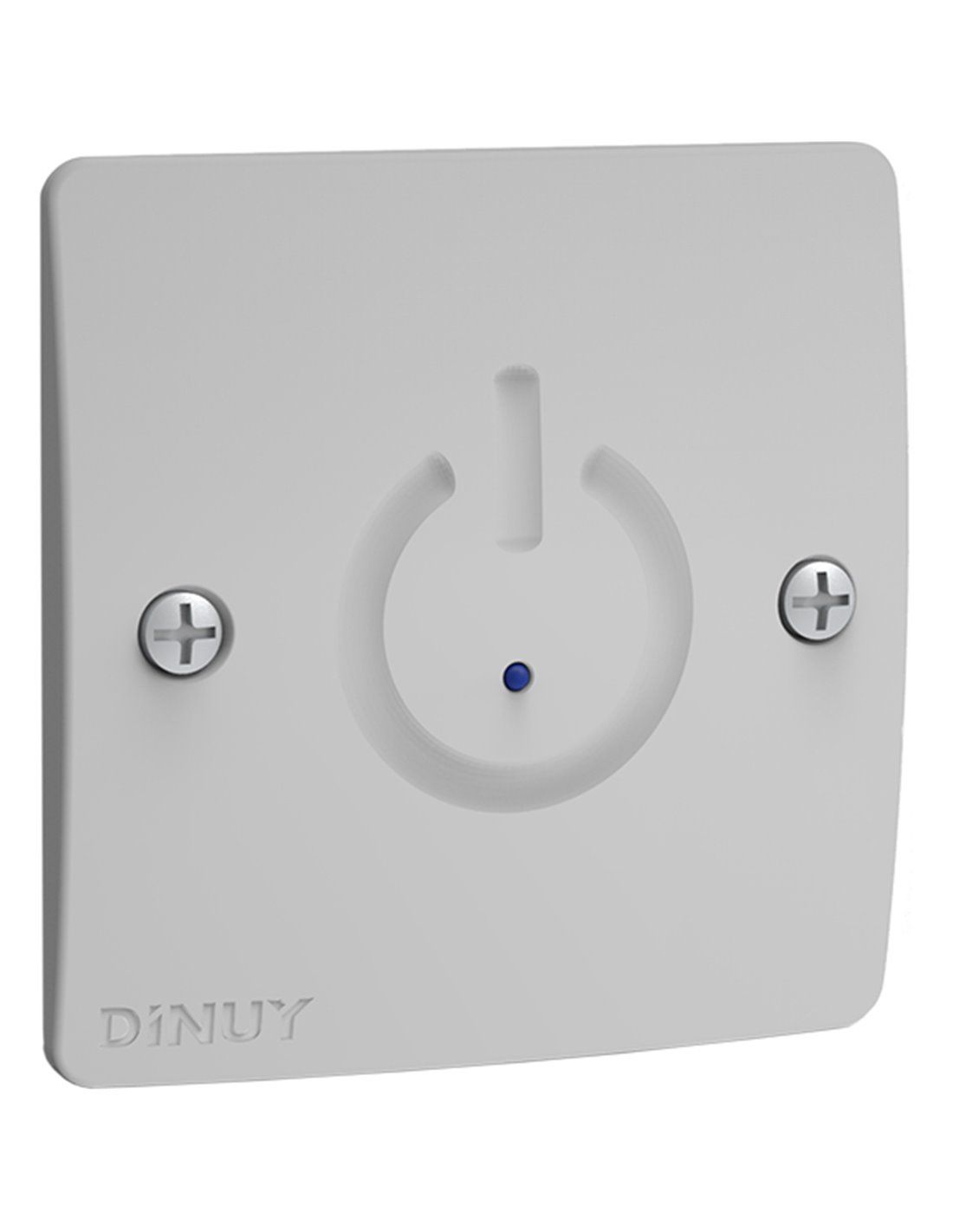

• 2-wire Timed Touch Button, for surface mounting on the wall.

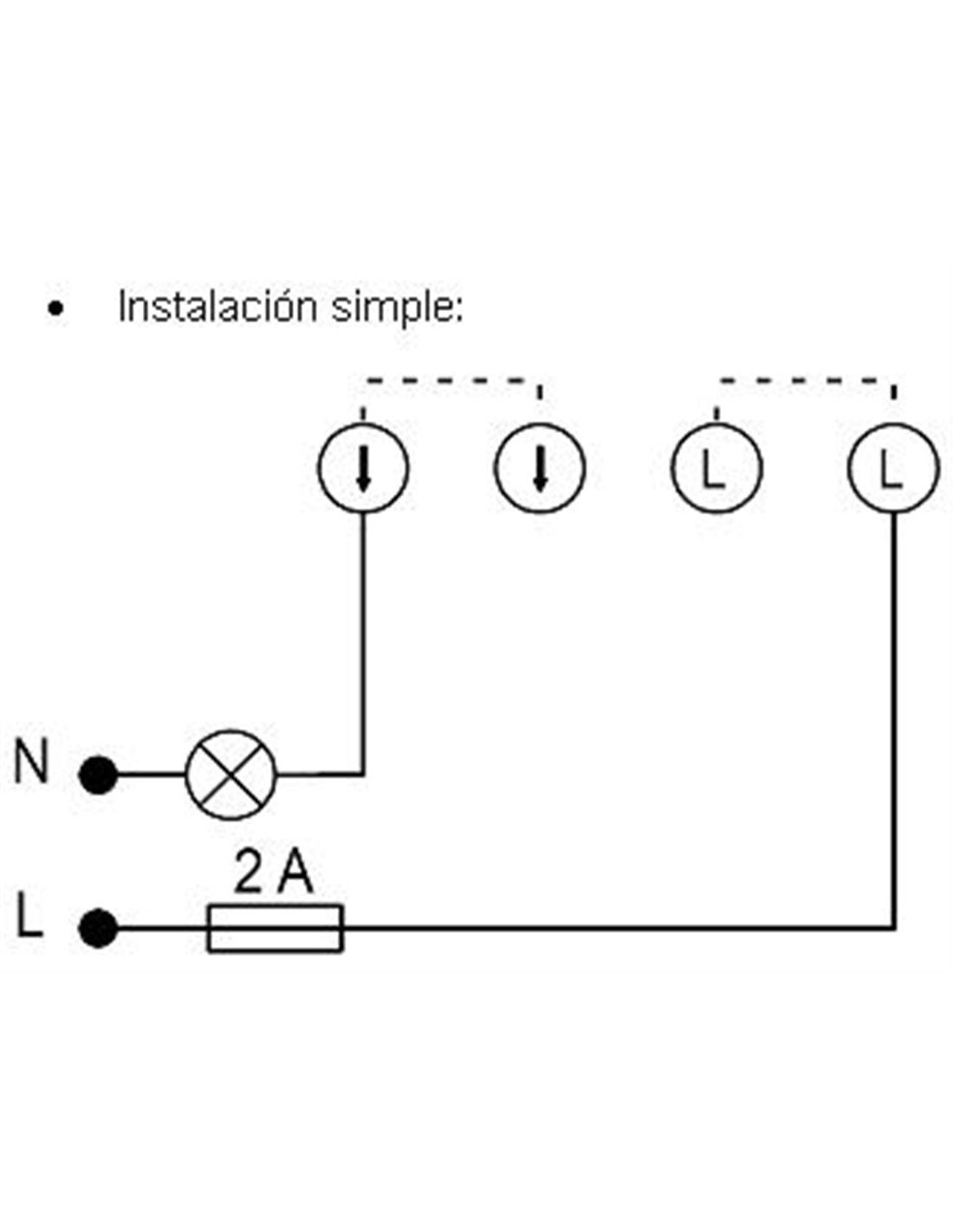

• 2-wire installation: lamp phase and turn. It does not require the Neutral.
• Valid, only, for Incandescence and Halogen. Not valid for LED lamps.
• Luminous LED that remains permanently lit.
• Resettable at any time during the timing.
• Includes Security Screws that prevent, or hinder, its theft.< br/>• Colour: white.
Product reference PT SUP 004
Supply Voltage (V) 230VAC
Frequency (Hz) 50
Own Consumption 0.7W
LED Lamps (W) 0
Incandescent and Halogen 230V (W) 500
Halogen 12V with electronic transformer (W) 500
Halogen with ferromagnetic transformer (W) 400
Fluorescent lamps (W) 0
Lamps Fluorescent (VA) 0
Contactor allowed No
Zero crossing No
2-wire installation
Permanent lighting No
Shutdown warning No
Minimum time delay (seconds ) 30
Maximum timing (minutes) 12
Timed remote control No
Light pushbuttons NO
Operating temperature (ºC) (min) 0
Operating temperature (ºC) (max) 40
Permanent Luminous LED YES
Universal Box Mounting. On surface. Safety screws
Environmental Protection IP20 according to UNE20324
According to Standard UNE-EN60669-2-1 and UNE-EN60669-2-3
