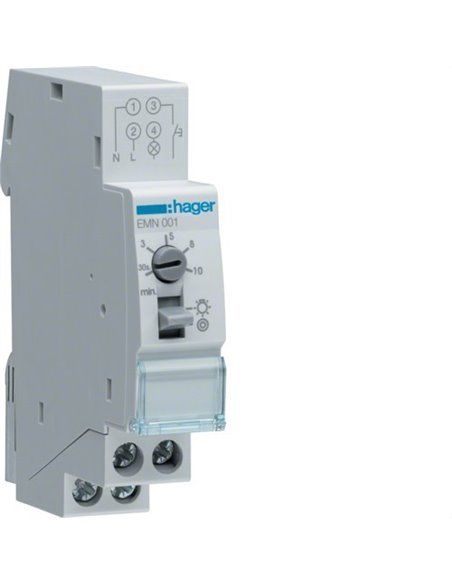

Automatic stair 16A Hager EMN001
General characteristics
Minute hand stair 16A
Allows you to save energy and to ensure the functioning of the load.
Timing adjustable from 30s to 10 min.
Technical features:
Way of fixing: | DIN rail |
Supply voltage: | 230V AC |
Supply voltage: | 230 V |
Rated voltage of employment in ac: | 195/230/253 V |
Assigned frequency: | 50/60 Hz |
Type of contact: | 1F |
Cutting power: | 16A-250V AC1 |
Pot. Max. with filament lamps: | 2300 W |
Timing range: | 30 seconds |
Type of connection: | Cage with screw |
Number of modules: | 1 |
IP protection index: | IP20 |
Rated current of employment in AC1: | 16 To |
Intensity of rest: | 100 mA |
