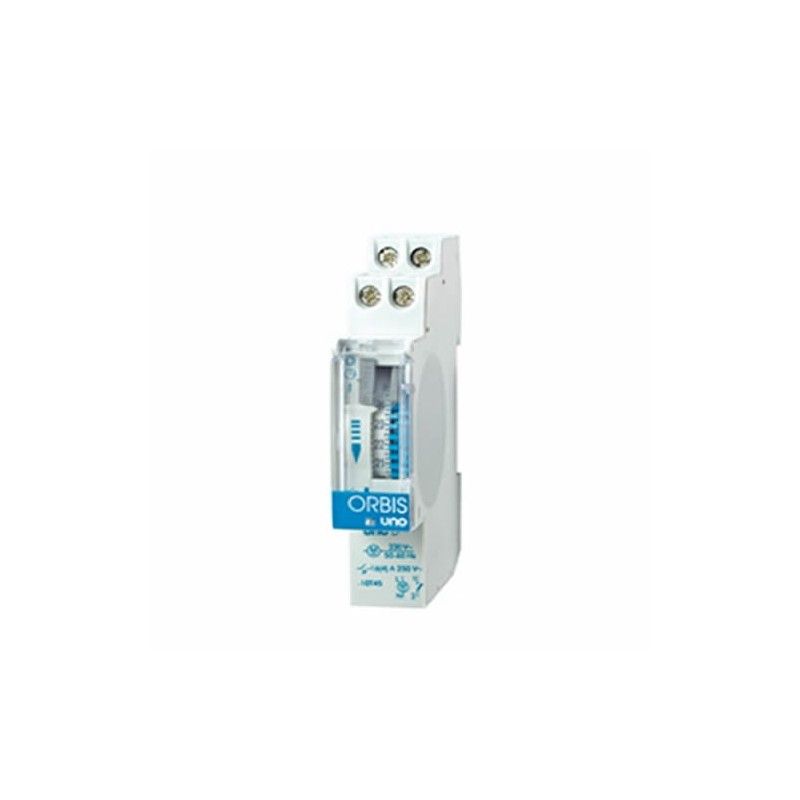

24 hour analog time switch with reserve UNO-QRD Orbis 400232

ORBIS OB400232
Available
€103.12
VAT included

Switch hours analog 24-hour ONE-QRD Orbis

With booking

128 Items

Order now and receive it...

20-01-2025   with  MRW

between 20-01-2025 and 21-01-2025   with  Correos

Description

Switch hours analog 24 hour with reserve ONE-QRD Orbis 400232

Features:

  • Module width: 17,5 mm
  • Contact simple.
  • Hot-swappable battery.
  • Schedule daily and weekly
  • Simple contact potential free
  • Versions with or without power reserve
  • Hot-swappable battery.

Technical features:

voltage nominal

120 or 230 Vc.to.

12,24, or 48 Vc.to. or cc

Nominal frequency 50-60 Hz
Power of rupture 16(4) A/250 Vc.to.
Reserve 150 hours.
Hot-swappable battery
Precision gear ±1 s/day at 23 ºC
Own consumption 0.5 W approx.
Maximum loads recommended Incandescent lamps: 2500 W
Fluorescent: 1200 VA
Halogen low-voltage: 2000 VA
Halogens (230V AC): 2500 W
Lamps low power consumption: 1000 VA
Lamps downlight: 900 VA
Lamps leds: 100 VA
Type of contact Simple
Manual control Auto-ON
Temperature
operation
-10 ºC to +45 ºC
Protection class II mount, right
Degree of protection IP 20 according to en 60529
Mounting On profile symmetric 35 mm according to en 60715
