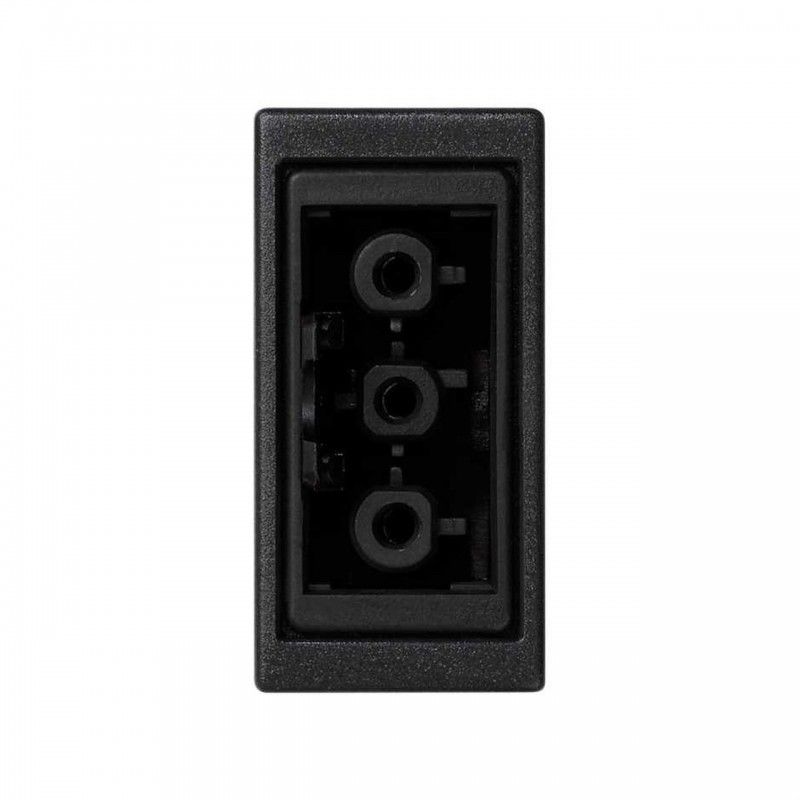

Placa K45 medio mecanismo con 1 conector hembra 3 polos gris grafito SIMON K121B/14
Placa K45 medio mecanismo con 1 conector hembra 3 polos gris grafito SIMON K121B/14

Plate K45 half mechanism with 1 female connector 3 poles graphite gray SIMON K121B / 14

SIMON K121B/14
Available
€5.37
VAT included
3-pole female quick-connect connector with 1-element graphite trim plate Simon K45. 3-pole female quick connect connector. It has a one-piece trim plate. In addition, it has an elegant graphite gray finish. This connector belongs to the Simon K45 series. The correct installation for the Simon female connector is recessed or surface mounted. Its intensity is 16A and the nominal voltage is 4 kV. The product voltage is 250 V. This connector is compatible with the Wieland Gesis GST18i system. The dimensions of the connector are 45x22.5 millimeters. The product includes the trim plate, which allows the connector to be directly attached to any type of enclosure in the Simon K45 range or in the Simon 500 Cima range, using an adapter (Ref. 50012088-038). Supports 1.5 to 2.5mm cable section and 9mm cable stripping. It is made of thermoplastically insulated and halogen-free metal components. This guarantees the non-spread of the flame in case of fire and low toxicity. The maximum temperature that this Simon female connector supports is 70 degrees Celsius.
53 Items

Order now and receive it...

23-01-2025   with  MRW

between 23-01-2025 and 24-01-2025   with  Correos

Product Details

Color
Grafito
EAN
8426436046863
Manufacturer
SIMON
Reference
SIMON K121B/14
Series / model
SIMON K45
Certification
CE
GPSR Safety warning
No
GPSR Manufacturer information
SIMON / Spain / Calle Diputación, 390-392, 08013 Barcelona / info@simonelectric.com / +34 934192500
GPSR EU responsible person
SIMON / Spain / Calle Diputación, 390-392, 08013 Barcelona / info@simonelectric.com / +34 934192500
GPSR e-mail manufacturer
info@simonelectric.com
