Surge limiter Combi SPU 1P+N 40A from the Resi 9 range
Suitable for tripping protection against overload and short circuits.
A voltage of 230V, Curve C, 40A with 1 pole plus neutral.
It is part of the Resi 9 range, which guarantees safety, quality and easy installation.

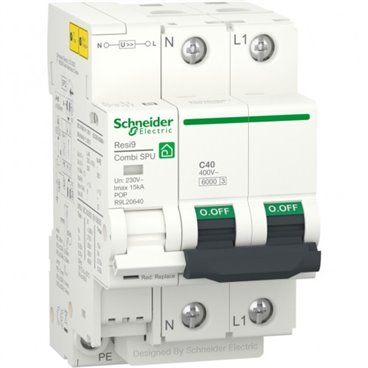

Transient and permanent overvoltage protection R9L20640 1P+N 40A Resi9 Combi SPU from Schneider Electric
The SPU combined module has 3 functions integrated in a single reference: Automatic General Switch (IGA), protection against permanent overvoltages and transient overvoltage limiter.
Protect your installation against overvoltages due to lightning strikes and overvoltages in the network.
Characteristics:
Product family: Resi9 Combi SPU
Number of poles: 1P + N
number of protected poles: 1
neutral position: Left
Rated current: 40A
Rated operating voltage: 230 V AC 50 Hz
Trip unit technology: Thermal-magnetic
Curve code: C
Breaking capacity: 6000 A Icn conforming to EN/IEC 60898-1
Mounting support: Rail DIN
quality labels: CE, AENOR
9 mm steps: 6
Response time: <25 ns
