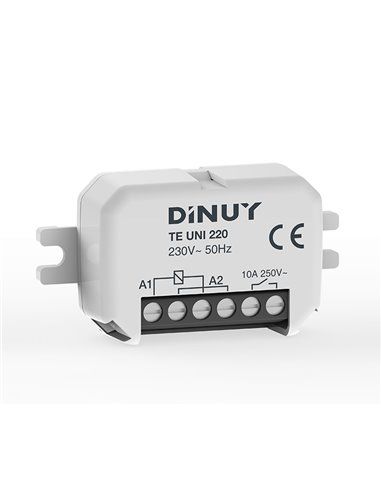

Unipolar impulse switch 1x10A 230V

DINUY TE UNI 220
Available
€53.60
VAT included

• Impulse relay with 1 potential free NO contact.
• Its output contact changes state every time its coil is powered through the push button. That is, one press closes its contact and the next press opens it.
• Unlike a contactor, the impulse switch coil does not remain under voltage and there is no permanent power consumption.
• Very low level noisy, very quiet.
• Flush mounting in junction box.
• Application examples: hotel or hospital rooms, homes, corridors, etc

148 Items

Order now and receive it...

20-01-2025   with  MRW

between 20-01-2025 and 21-01-2025   with  Correos

Description

Product reference TE UNI 220
Supply voltage (V) 230VAC
Frequency (Hz) 50
Relay breaking power (A) 10
LED lamps (W ) 400
Incandescent and Halogen 230V (W) 2,000
Halogen 12V with electronic transformer (W) 1,000
Fluorescent lamps (W) 600
Mounting Mechanism box
Contacts Single-pole NO switch
Contactor allowed YES
Zero crossing YES
Illuminated pushbuttons Up to 3 (up to 10 with AC DM-003)
Voltage-free contact YES
Power consumption the Coil In operation: 0W In the pulse: 50mW
Minimum pulse duration (sec) 0.05
Minimum interval between pulses 0.1sec (maximum 20 per minute)
Electric life With maximum load : >200,000 operations
Mechanical life >1 million complete operations
Ambient temperature (ºC) (min) -20
Ambient temperature (ºC) (max) 45
Protection Environmental IP20, Class II
According to EN60669-2-2
